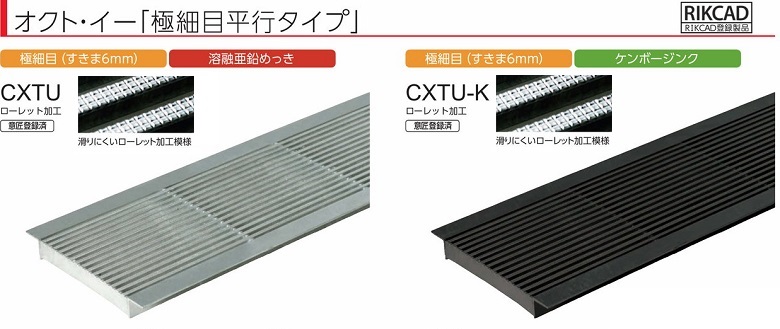

極細目平行グレーチング ノンスリップの規格寸法・価格表
適用
荷重 |
溝幅 |
寸法
b x W |
製品
長さ
A |
質量
(kg/枚) |
溶融亜鉛めっき |
ケンボージンク（カラーめっき） |
| サイレントゴム無 |
サイレントゴム付 |
サイレントゴム無 |
サイレントゴム付 |
| 型式記号 |
価格(円) |
型式記号 |
価格(円) |
型式記号 |
価格(円) |
型式記号 |
価格(円) |
| T-2 |
100 |
997×91 |
145 |
5.5 |
CXTU-2-10 |
¥5,082 |
CXTUL-2-10 |
¥7,062 |
CXTU-2K-10 |
¥9,900 |
CXTUL-2K-10 |
¥11,880 |
| 120 |
997×111 |
165 |
6.0 |
CXTU-2-12 |
¥5,280 |
CXTUL-2-12 |
¥7,260 |
CXTU-2K-12 |
¥10,560 |
CXTUL-2K-12 |
¥12,540 |
| 150 |
997×141 |
195 |
7.5 |
CXTU-2-15 |
¥6,270 |
CXTUL-2-15 |
¥8,250 |
CXTU-2K-15 |
¥12,870 |
CXTUL-2K-15 |
¥14,850 |
| 180 |
997×171 |
225 |
8.4 |
CXTU-2-18 |
¥7,194 |
CXTUL-2-18 |
¥9,174 |
CXTU-2K-18 |
¥14,586 |
CXTUL-2K-18 |
¥16,566 |
| 200 |
997×191 |
245 |
10.0 |
CXTU-2-20 |
¥8,052 |
CXTUL-2-20 |
¥10,032 |
CXTU-2K-20 |
¥16,830 |
CXTUL-2K-20 |
¥18,810 |
| 240 |
997×231 |
285 |
13.2 |
CXTU-2-24 |
¥10,560 |
CXTUL-2-24 |
¥12,540 |
CXTU-2K-24 |
¥22,176 |
CXTUL-2K-24 |
¥24,156 |
| 300 |
997×291 |
345 |
16.1 |
CXTU-2-30 |
¥14,388 |
CXTUL-2-30 |
¥16,368 |
CXTU-2K-30 |
¥28,644 |
CXTUL-2K-30 |
¥30,624 |
|
| 歩行 |
100 |
997×91 |
145 |
4.9 |
CXTU-1-10 |
¥4,752 |
CXTUL-1-10 |
¥6,732 |
CXTU-1K-10 |
¥9,108 |
CXTUL-1K-10 |
¥11,088 |
| 120 |
997×111 |
165 |
5.3 |
CXTU-1-12 |
¥4,884 |
CXTUL-1-12 |
¥6,864 |
CXTU-1K-12 |
¥9,570 |
CXTUL-1K-12 |
¥11,550 |
| 150 |
997×141 |
195 |
6.2 |
CXTU-1-15 |
¥5,544 |
CXTUL-1-15 |
¥7,524 |
CXTU-1K-15 |
¥11,022 |
CXTUL-1K-15 |
¥13,002 |
| 180 |
997×171 |
225 |
6.8 |
CXTU-1-18 |
¥6,336 |
CXTUL-1-18 |
¥8,316 |
CXTU-1K-18 |
¥12,342 |
CXTUL-1K-18 |
¥14,322 |
| 200 |
997×191 |
245 |
7.6 |
CXTU-1-20 |
¥6,732 |
CXTUL-1-20 |
¥8,712 |
CXTU-1K-20 |
¥13,332 |
CXTUL-1K-20 |
¥15,312 |
| 240 |
997×231 |
285 |
8.6 |
CXTU-1-24 |
¥7,854 |
CXTUL-1-24 |
¥9,834 |
CXTU-1K-24 |
¥15,378 |
CXTUL-1K-24 |
¥17,358 |
| 300 |
997×291 |
345 |
10.2 |
CXTU-1-30 |
¥9,240 |
CXTUL-1-30 |
¥11,220 |
CXTU-1K-30 |
¥18,282 |
CXTUL-1K-30 |
¥20,262 |
|
CXTU
亜鉛めっきゴム無 |
CXTUL
亜鉛めっきゴム付 |
CXTU-K
カラーめっきゴム無 |
CXTUL-K
カラーめっきゴム付 |
|
