ニムラ 一般用ステンレスグレーチング SDM・SDM-V

支払
送料
詳細
本州・四国(一部地域を除く)
1,944円※加算送料について
直送品につき3万円以上で送料無料
出荷 6~10営業日 北海道・九州・離島・一部地域
見積フォーム FAX見積用紙



発注型式    製品情報
グレーチング SDM 15-250 P=15

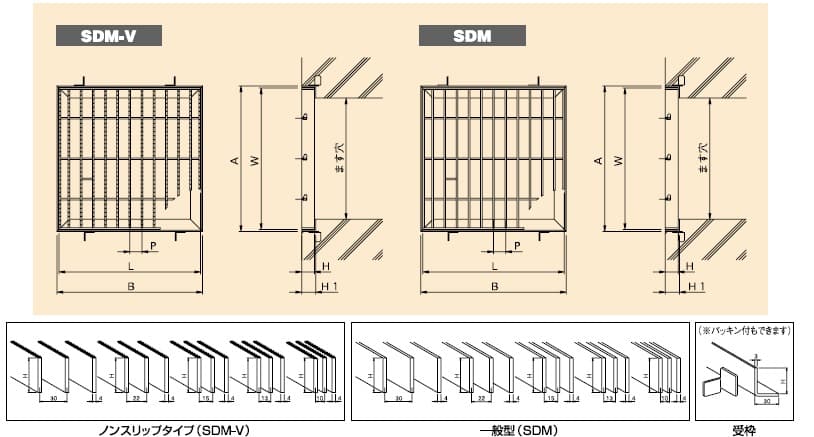

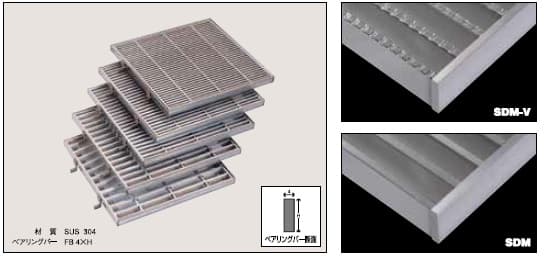

  • SDMはプレーンタイプ・SDM-Vはノンスリップタイプです。
  • ピッチは30、22、15、13、10ミリです。
 四方枠 SDM 15-250 型
   ※ 受枠の発注漏れにご注意ください。

■ SDM(プレーンタイプ) 寸法・価格表 ■

内径

mm
呼称記号 グレーチング 受枠
寸法
mm
ピッチ 30mm ピッチ 22mm ピッチ 15mm ピッチ 13mm ピッチ 10mm 寸法 mm 質量
kg
 税込
価格/枚
WxL H 質量
kg
適用
荷重
税込価格/枚 質量
kg
適用
荷重
税込価格/枚 質量
kg
適用
荷重
税込価格/枚 質量
kg
適用
荷重
税込
価格/枚
質量
kg
適用
荷重
税込
価格/枚
AxB H1
250 SDM15-250 300
x

300
15 1.9 ¥4,130 2.5 ¥5,120 3.3 ¥6,770 3.8 T-2 ¥7,650 4.7 T-2 ¥10,840 310
x
310
18 1.2 ¥3,740
SDM20-250 20 2.6 ¥5,280 3.4 T-2 ¥6,490 4.5 T-2 ¥8,690 5.1 T-6 ¥9,900 6.4 T-14 ¥13,310 23 1.4 ¥3,960
SDM25-250 25 3.3 T-2 ¥6,160 4.2 T-6 ¥7,590 5.6 T-14 ¥10,560 6.3 T-20 ¥11,830 7.9 T-20 ¥16,280 28 1.5 ¥4,180
SDM32-250 32 4.1 T-14 ¥7,430 5.3 T-20 ¥9,350 7.1 T-20 ¥12,540 8.0 T-20 ¥14,800 10.1 T-20 ¥19,360 35 1.7 ¥4,570
SDM38-250 38 - T-20 ¥9,570 - T-20 ¥12,210 - T-20 ¥16,500 - T-20 ¥16,780 - T-20 ¥25,580 41 - ¥4,900
300 SDM15-300 350
x
350
15 2.7 ¥5,720 3.3 ¥7,150 4.5 ¥9,410 5.1 ¥10,780 6.4 T-2 ¥15,730 360
x
360
18 1.4 ¥4,400
SDM20-300 20 3.7 ¥7,100 4.5 ¥8,750 6.1 T-2 ¥11,880 6.9 T-2 ¥13,530 8.7 T-6 ¥18,210 23 1.6 ¥4,570
SDM25-300 25 4.5 T-2 ¥8,310 5.6 T-2 ¥10,450 7.5 T-6 ¥14,360 8.5 T-14 ¥15,950 10.7 T-20 ¥22,110 28 1.8 ¥4,900
SDM32-300 32 5.6 T-2 ¥10,230 7.0 T-14 ¥12,760 9.5 T-14 ¥17,820 10.9 T-20 ¥21,290 13.7 T-20 ¥27,560 35 2.0 ¥5,230
SDM38-300 38 - T-14 ¥11,880 - T-20 ¥14,850 - T-20 ¥20,130 - T-20 ¥24,260 - T-20 ¥31,020 41 - ¥5,720
350 SDM15-350 400
x
400
15 3.4 ¥7,100 4.2 ¥8,750 5.9 ¥11,720 6.6 ¥13,310 8.3 ¥18,810 410
x
410
18 1.7 ¥4,900
SDM20-350 20 4.7 ¥8,970 5.7 ¥11,330 7.9 T-2 ¥15,350 8.9 T-2 ¥17,600 11.2 T-2 ¥23,600 23 1.8 ¥5,170
SDM25-350 25 5.8 ¥10,560 7.0 T-2 ¥13,420 9.8 T-2 ¥18,540 11.0 T-6 ¥20,960 13.8 T-14 ¥28,550 28 2.0 ¥5,560
SDM32-350 32 7.3 T-2 ¥12,980 8.9 T-2 ¥16,170 12.5 T-14 ¥22,170 14.1 T-20 ¥26,180 17.7 T-20 ¥33,990 35 2.3 ¥6,050
SDM38-350 38 8.5 T-6 ¥13,970 10.4 T-14 ¥21,890 14.7 T-20 ¥26,070 16.6 T-20 ¥29,870 20.9 T-20 ¥40,100 41 2.5 ¥6,490
SDM50-350 50 11.1 T-20 ¥19,970 13.6 T-20 ¥26,570 19.2 T-20 ¥36,190 21.7 T-20 ¥40,650 27.3 T-20 ¥55,770 53 3.0 ¥7,150
400 SDM15-400 450
x
450
15 4.2 ¥8,750 5.5 ¥10,890 7.4 ¥14,960 8.2 ¥17,270 10.5 ¥22,990 460
x
460
18 1.9 ¥5,610
SDM20-400 20 5.7 ¥11,330 7.4 ¥14,140 10.0 ¥19,420 11.1 T-2 ¥22,390 14.2 T-2 ¥29,870 23 2.1 ¥5,830
SDM25-400 25 7.0 ¥13,370 9.1 ¥16,940 12.3 T-2 ¥23,380 13.7 T-2 ¥26,510 17.5 T-6 ¥36,030 28 2.3 ¥6,220
SDM32-400 32 8.8 T-2 ¥16,120 11.5 T-2 ¥20,240 15.6 T-6 ¥27,670 17.4 T-14 ¥33,060 22.3 T-20 ¥42,630 35 2.6 ¥6,770
SDM38-400 38 10.3 T-2 ¥18,700 13.5 T-14 ¥23,600 18.4 T-20 ¥32,670 20.5 T-20 ¥37,570 26.4 T-20 ¥50,330 41 2.9 ¥7,320
SDM50-400 50 13.4 T-14 ¥22,990 17.6 T-20 ¥30,750 23.9 T-20 ¥42,410 26.7 T-20 ¥51,210 34.4 T-20 ¥65,180 53 3.4 ¥8,030
450 SDM15-450 500
x
500
15 5.1 ¥10,560 6.5 ¥13,150 8.9 ¥18,150 10.1 ¥20,790 12.6 ¥27,890 510
x

510
18 2.1 ¥6,160
SDM20-450 20 7.0 ¥13,700 8.9 ¥17,110 12.0 ¥23,540 13.6 ¥26,950 17.3 T-2 ¥36,190 23 2.3 ¥6,490
SDM25-450 25 8.6 ¥16,230 10.9 ¥20,520 14.8 T-2 ¥28,490 16.8 T-2 ¥31,960 21.5 T-2 ¥43,890 28 2.5 ¥6,880
SDM32-450 32 10.8 ¥19,580 13.8 T-2 ¥24,530 18.8 T-2 ¥33,830 21.4 T-14 ¥40,100 27.4 T-14 ¥52,030 35 2.9 ¥7,540
SDM38-450 38 12.7 T-2 ¥22,720 16.3 T-2 ¥28,770 22.2 T-14 ¥39,880 25.2 T-20 ¥45,490 32.3 T-20 ¥61,270 41 3.2 ¥8,030
SDM50-450 50 16.4 T-14 ¥28,220 21.1 T-20 ¥37,620 28.9 T-20 ¥52,030 32.9 T-20 ¥62,040 42.2 T-20 ¥80,030 53 3.7 ¥8,860
600 SDM15-600 650
x
650
15 8.4 ¥23,870 10.8 ¥31,960 14.7 ¥46,310  16.8 ¥53,300  21.3 ¥74,030 660
x

660
18 2.7 ¥9,960
SDM20-600 20  11.2 ¥30,360 14.2 ¥40,700 19.2 ¥59,790  21.9 ¥68,920  27.6 ¥92,350 23 3.0 ¥10,450
SDM25-600 25  13.7 ¥37,950 17.6 ¥48,730 23.9 ¥74,250  27.3 T-2 ¥84,430  34.5 T-2 ¥113,140 28 3.3 ¥11,110
SDM32-600 32  17.4 ¥46,260 22.4 ¥56,100 30.6 T-2 ¥84,320  35.0 T-2 ¥96,910  44.4 T-6 ¥125,950 35 3.7 ¥11,880
SDM38-600 38  20.5 T-2 ¥54,670 26.5 T-2 ¥63,200 36.3 T-6 ¥98,120  41.5 T-14 ¥112,150  52.8 T-14 ¥153,670 41 4.0 ¥12,760
SDM50-600 50  26.6 T-2 ¥72,490 34.5 T-14 ¥86,460 47.5 T-20 ¥118,470  54.5 T-20 ¥137,500  69.4 T-20 ¥180,130 53 4.7 ¥13,970



■ SDM-V(ノンスリップ)  寸法・価格表 ■

内径

mm
呼称記号 グレーチング 受枠
寸法
mm
ピッチ 30mm ピッチ 22mm ピッチ 15mm ピッチ 13mm ピッチ 10mm 寸法 mm 質量
kg
税込
価格
/枚
WxL H 質量
kg
適用
荷重
税込
価格
/枚
質量
kg
適用
荷重
税込
価格
/枚
質量
kg
適用
荷重
税込
価格
/枚
質量
kg
適用
荷重
税込
価格
/枚
質量
kg
適用
荷重
税込
価格
/枚
AxB H1
250
SDM-V 15-250 300
x

300
15 1.9 ¥5,390 2.5 ¥6,990 3.3 ¥9,410 3.8 T-2 ¥10,450 4.7 T-2 ¥13,640 310
x
310
18 1.2 ¥3,740
SDM-V 20-250 20 2.6 ¥7,100 3.4 T-2 ¥8,800 4.5 T-2 ¥12,270 5.1 T-6 ¥13,970 6.4 T-14 ¥17,770 23 1.4 ¥3,960
SDM-V 25-250 25 3.3 T-2 ¥8,200 4.2 T-6 ¥9,900 5.6 T-14 ¥13,700 6.3 T-20 ¥15,290 7.9 T-20 ¥21,840 28 1.5 ¥4,180
SDM-V 32-250 32 4.1 T-14 ¥9,740 5.3 T-20 ¥12,320 7.1 T-20 ¥16,610 8.0 T-20 ¥19,530 10.1 T-20 ¥25,850 35 1.7 ¥4,570
SDM-V 38-250 38 - T-20 ¥11,220 - T-20 ¥14,250 - T-20 ¥19,690 - T-20 ¥21,840 - T-20 ¥34,430 41 - ¥4,900
300
SDM-V 15-300 350
x
350
15 2.7 ¥7,540 3.3 ¥9,570 4.5 ¥12,930 5.1 ¥14,740 6.4 T-2 ¥19,310 360
x
360
18 1.4 ¥4,400
SDM-V 20-300 20 3.7 ¥10,120 4.5 ¥12,430 6.1 T-2 ¥16,940 6.9 T-2 ¥19,360 8.7 T-6 ¥24,480 23 1.6 ¥4,570
SDM-V 25-300 25 4.5 T-2 ¥11,500 5.6 T-2 ¥13,590 7.5 T-6 ¥18,540 8.5 T-14 ¥20,680 10.7 T-20 ¥29,590 28 1.8 ¥4,900
SDM-V 32-300 32 5.6 T-2 ¥13,480 7.0 T-14 ¥16,890 9.5 T-14 ¥23,100 10.9 T-20 ¥27,670 13.7 T-20 ¥36,850 35 2.0 ¥5,230
SDM-V 38-300 38 - T-14 ¥14,850 - T-20 ¥19,360 - T-20 ¥26,180 - T-20 ¥30,030 - T-20 ¥41,580 41 - ¥5,720
350 SDM-V 15-350 400
x
400
15 3.4 ¥9,410 4.2 ¥11,770 5.9 ¥16,280 6.6 ¥18,260 8.3 ¥20,900 410
x
410
18 1.7 ¥4,900
SDM-V 20-350 20 4.7 ¥12,270 5.7 ¥15,620 7.9 T-2 ¥22,060 8.9 T-2 ¥25,250 11.2 T-2 ¥31,680 23 1.8 ¥5,170
SDM-V 25-350 25 5.8 ¥13,590 7.0 T-2 ¥18,040 9.8 T-2 ¥25,250 11.0 T-6 ¥28,600 13.8 T-14 ¥38,340 28 2.0 ¥5,560
SDM-V 32-350 32 7.3 T-2 ¥17,000 8.9 T-2 ¥21,400 12.5 T-14 ¥30,140 14.1 T-20 ¥35,750 17.7 T-20 ¥45,760 35 2.3 ¥6,050
SDM-V 38-350 38 8.5 T-6 ¥18,700 10.4 T-14 ¥25,360 14.7 T-20 ¥33,880 16.6 T-20 ¥37,620 20.9 T-20 ¥53,850 41 2.5 ¥6,490
SDM-V 50-350 50 11.1 T-20 ¥24,090 13.6 T-20 ¥30,970 19.2 T-20 ¥43,340 21.7 T-20 ¥48,240 27.3 T-20 ¥74,910 53 3.0 ¥7,150
400 SDM-V 15-400 450
x
450
15 4.2 ¥10,780 5.5 ¥14,910 7.4 ¥18,650 8.2 ¥21,560 10.5 ¥30,860 460
x
460
18 1.9 ¥5,610
SDM-V 20-400 20 5.7 ¥14,030 7.4 ¥19,360 10.0 ¥24,200 11.1 T-2 ¥27,940 14.2 T-2 ¥40,100 23 2.1 ¥5,830
SDM-V 25-400 25 7.0 ¥15,900 9.1 ¥22,830 12.3 T-2 ¥27,610 13.7 T-2 ¥31,240 17.5 T-6 ¥48,400 28 2.3 ¥6,220
SDM-V 32-400 32 8.8 T-2 ¥18,810 11.5 T-2 ¥26,510 15.6 T-6 ¥35,150 17.4 T-14 ¥42,020 22.3 T-20 ¥57,200 35 2.6 ¥6,770
SDM-V 38-400 38 10.3 T-2 ¥21,400 13.5 T-14 ¥29,370 18.4 T-20 ¥41,580 20.5 T-20 ¥46,480 26.4 T-20 ¥67,490 41 2.9 ¥7,320
SDM-V 50-400 50 13.4 T-14 ¥26,680 17.6 T-20 ¥37,290 23.9 T-20 ¥50,660 26.7 T-20 ¥58,140 34.4 T-20 ¥87,450 53 3.4 ¥8,030
450 SDM-V 15-450 500
x
500
15 5.1 ¥13,370 6.5 ¥18,100 8.9 ¥26,020 10.1 ¥29,760 12.6 ¥37,620 510
x

510
18 2.1 ¥6,160
SDM-V 20-450 20 7.0 ¥17,330 8.9 ¥23,430 12.0 ¥33,770 13.6 ¥38,610 17.3 T-2 ¥48,840 23 2.3 ¥6,490
SDM-V 25-450 25 8.6 ¥20,130 10.9 ¥27,830 14.8 T-2 ¥35,530 16.8 T-2 ¥39,880 21.5 T-2 ¥59,020 28 2.5 ¥6,880
SDM-V 32-450 32 10.8 ¥24,420 13.8 T-2 ¥32,780 18.8 T-2 ¥43,010 21.4 T-14 ¥50,990 27.4 T-14 ¥69,800 35 2.9 ¥7,540
SDM-V 38-450 38 12.7 T-2 ¥26,570 16.3 T-2 ¥36,800 22.2 T-14 ¥49,720 25.2 T-20 ¥55,110 32.3 T-20 ¥84,810 41 3.2 ¥8,030
SDM-V 50-450 50 16.4 T-14 ¥33,720 21.1 T-20 ¥45,490 28.9 T-20 ¥62,370 32.9 T-20 ¥69,800 42.2 T-20 ¥107,360 53 3.7 ¥8,860
600 SDM-V 15-600 650
x
650
15 8.4 ¥29,920 10.8 ¥38,230 14.7 ¥51,260  16.8 ¥57,920  21.3 ¥74,640 660
x

660
18 2.7 ¥9,960
SDM-V 20-600 20  11.2 ¥39,330 14.2 ¥49,560 19.2 ¥67,210  21.9 ¥76,840  27.6 ¥99,830 23 3.0 ¥10,450
SDM-V 25-600 25  13.7 ¥45,760 17.6 ¥57,420 23.9 ¥80,360  27.3 T-2 ¥91,740  34.5 T-2 ¥132,110 28 3.3 ¥11,110
SDM-V 32-600 32  17.4 ¥56,490 22.4 ¥63,140 30.6 T-2 ¥91,190  35.0 T-2 ¥104,720  44.4 T-6 ¥139,260 35 3.7 ¥11,880
SDM-V 38-600 38  20.5 T-2 ¥60,780 26.5 T-2 ¥77,220 36.3 T-6 ¥107,360  41.5 T-14 ¥122,270  52.8 T-14 ¥179,740 41 4.0 ¥12,760
SDM-V 50-600 50  26.6 T-2 ¥78,050 34.5 T-14 ¥102,030 47.5 T-20 ¥127,490  54.5 T-20 ¥145,700  69.4 T-20 ¥222,920 53 4.7 ¥13,970
